Hydrostatic Level Indicator Transmitter
Model No: KCHLIT
Hydrostatic Level Indicator Transmitters are designed for continuous liquid-level measurement with local indication and remote signal transmission.
The transmitter measures hydrostatic pressure and converts it into a proportional level signal, while the integrated LCD provides clear on-site indication. Depending on the configuration, analogue outputs such as 4–20 mA, 1–5 V or 2–10 V are available, with HART or RS485 Modbus RTU communication options for remote monitoring and control.
The product is available in top-mounted and side-mounted configurations with threaded, flanged, sanitary Tri-Clamp and flush-diaphragm process connections. Flush diaphragm versions can be supplied in SS316L, Hastelloy C, Tantalum or PTFE-coated construction for demanding process media.
Key Specifications
- Continuous hydrostatic level measurement up to 100 m
- Integrated LCD for local level indication
- 4–20 mA / 1–5 V / 2–10 V output options
- HART / RS485 Modbus RTU communication options
- Flameproof IP67 / Ex d IIC T6 Gb enclosure
- SS304 / SS316 wetted parts
- Top- or side-mounted installation with multiple process connections
Technical Specifications
- Measured Variable
- Liquid level – hydrostatic
- Measuring Range
- Up to 100 m
- Accuracy
- ±2% of FSD or better, depending on configuration
- Process Connection
- Threaded / Flanged / Tri-Clamp / Flush Diaphragm
- Wetted Parts
- SS304 / SS316 / SS316L, depending on configuration
- Enclosure
- Flameproof, IP67 / Ex d IIC T6 Gb
- Output
- 4–20 mA / 1–5 V / 2–10 V
- Communication
- HART / RS485 Modbus RTU
- Power Supply
- 24 VDC
- Display
- Local LCD
- Mounting
- Top mounted / Side mounted
Find Applications
- Storage tank level measurement
- Process vessel level monitoring
- Water and wastewater applications
- Chemical and corrosive liquid level measurement
- Viscous or sticky media with flush diaphragm
- Remote monitoring through HART or RS485 Modbus RTU
- Local level indication where field display is required
Downloads & images
Technical documents
Types of Hydrostatic Level Indicator Transmitter We Manufacture
Select Explore specifications to view that configuration's data in a popup.

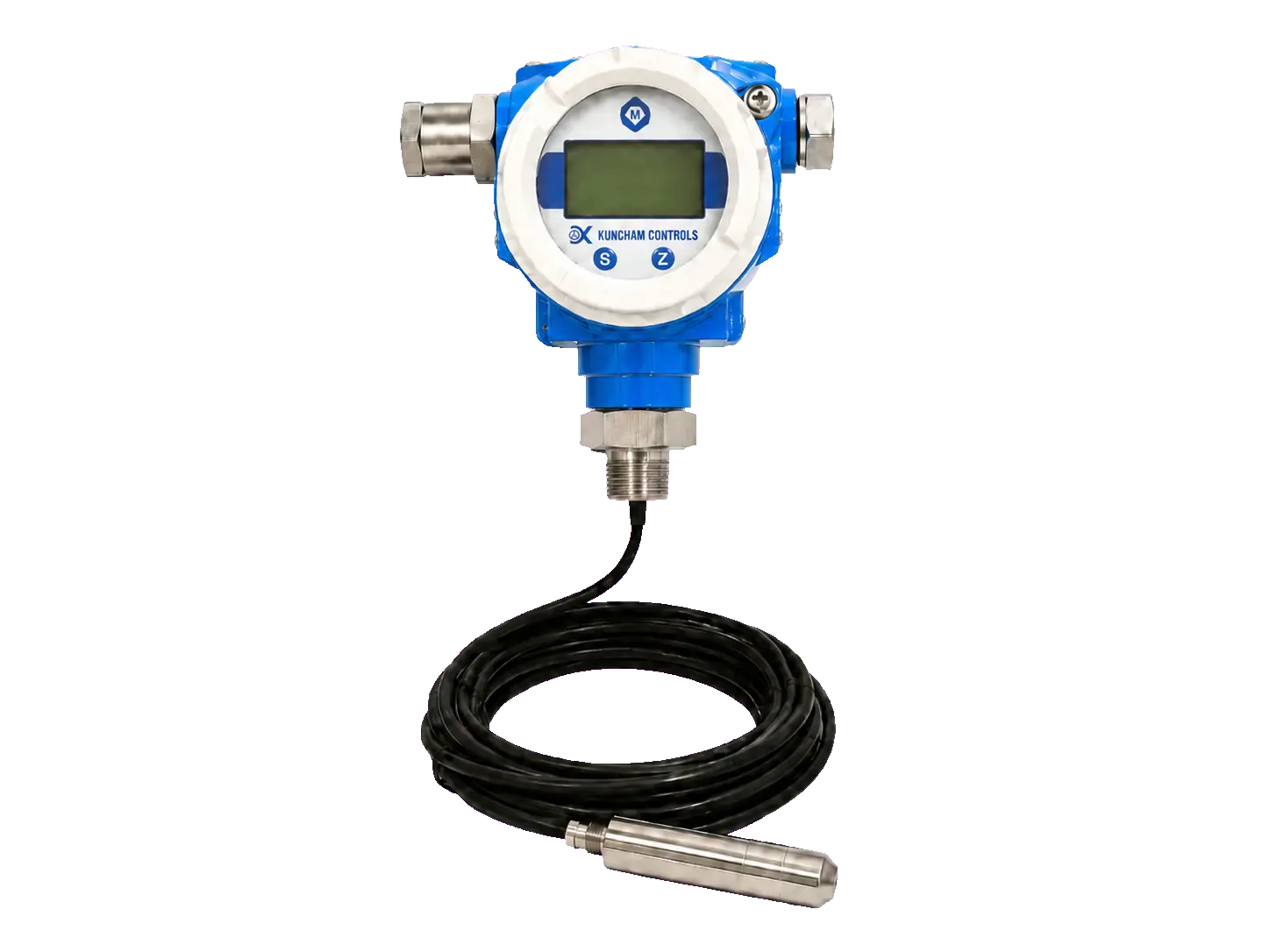

Hydrostatic Level Indicator Transmitter — Top Mounted – Threaded
Top-mounted submersible configuration with a threaded connection for open tanks and sumps.
- Configuration
- Top-mounted submersible sensor with threaded connection
- Key Feature
- Simple top installation with immersed sensing
- Suitable For
- Open tanks, sumps and wells

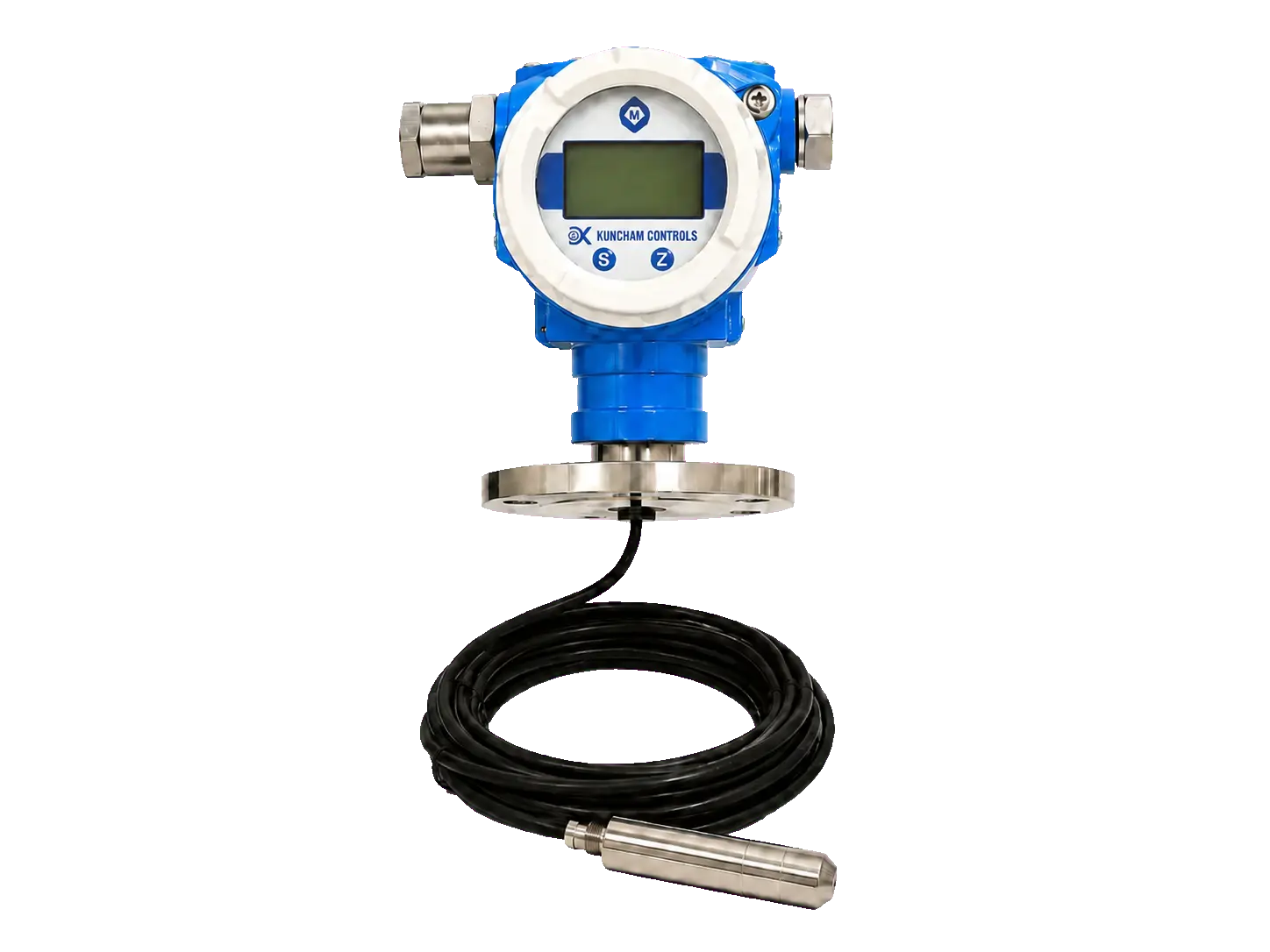

Hydrostatic Level Indicator Transmitter — Top Mounted – Flanged
Top-mounted configuration with a flanged connection for larger vessels and nozzles.
- Configuration
- Top-mounted submersible sensor with flanged connection
- Key Feature
- Secure mounting on larger vessel nozzles
- Suitable For
- Storage tanks and process vessels

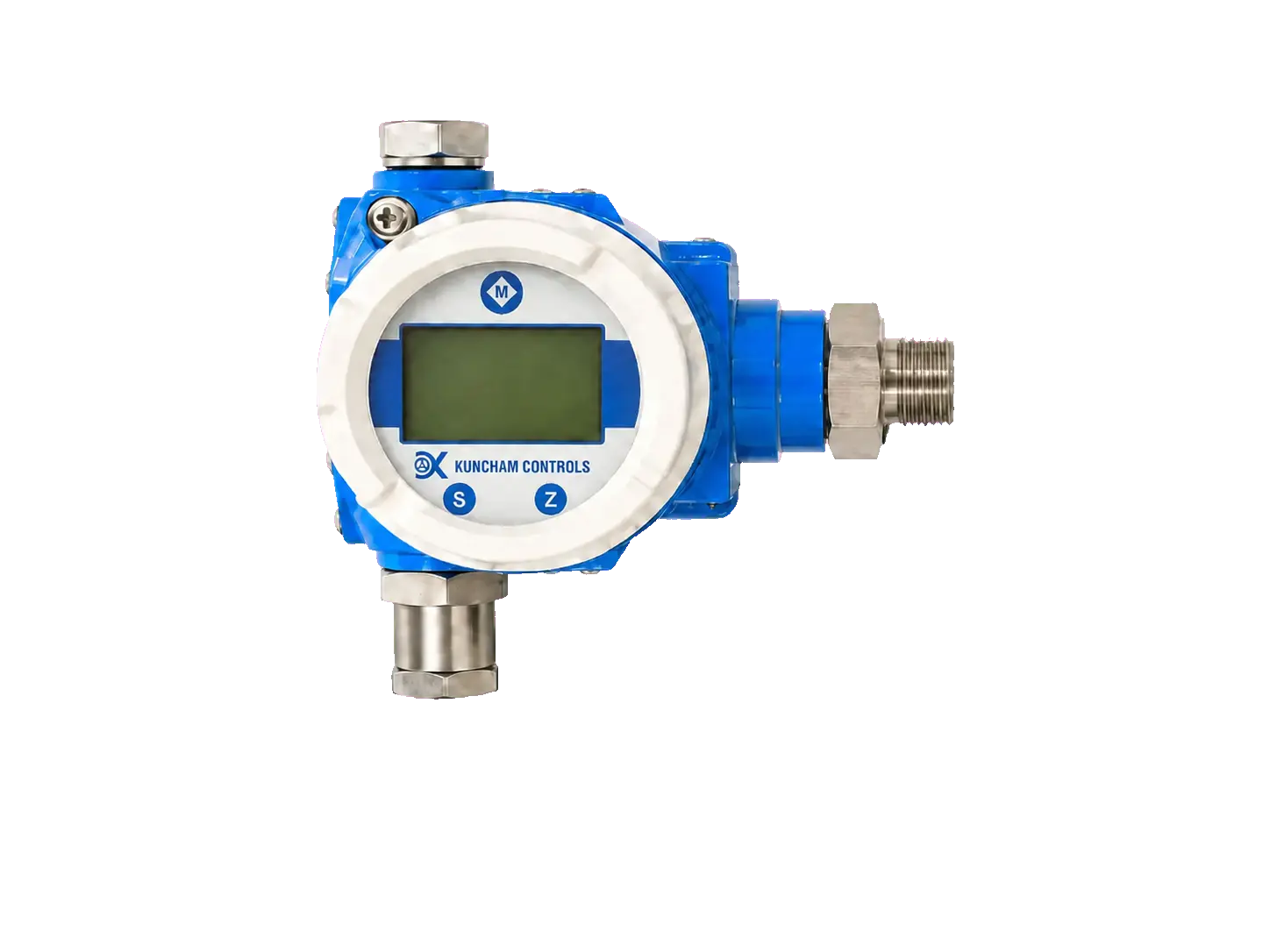

Hydrostatic Level Indicator Transmitter — Side Mounted – Threaded
KCPT-SM
Side-mounted configuration with a threaded connection where top access is not available.
- Configuration
- Side-mounted hydrostatic sensor with threaded connection
- Key Feature
- Compact installation without top access
- Suitable For
- Tanks with accessible lower-side connection

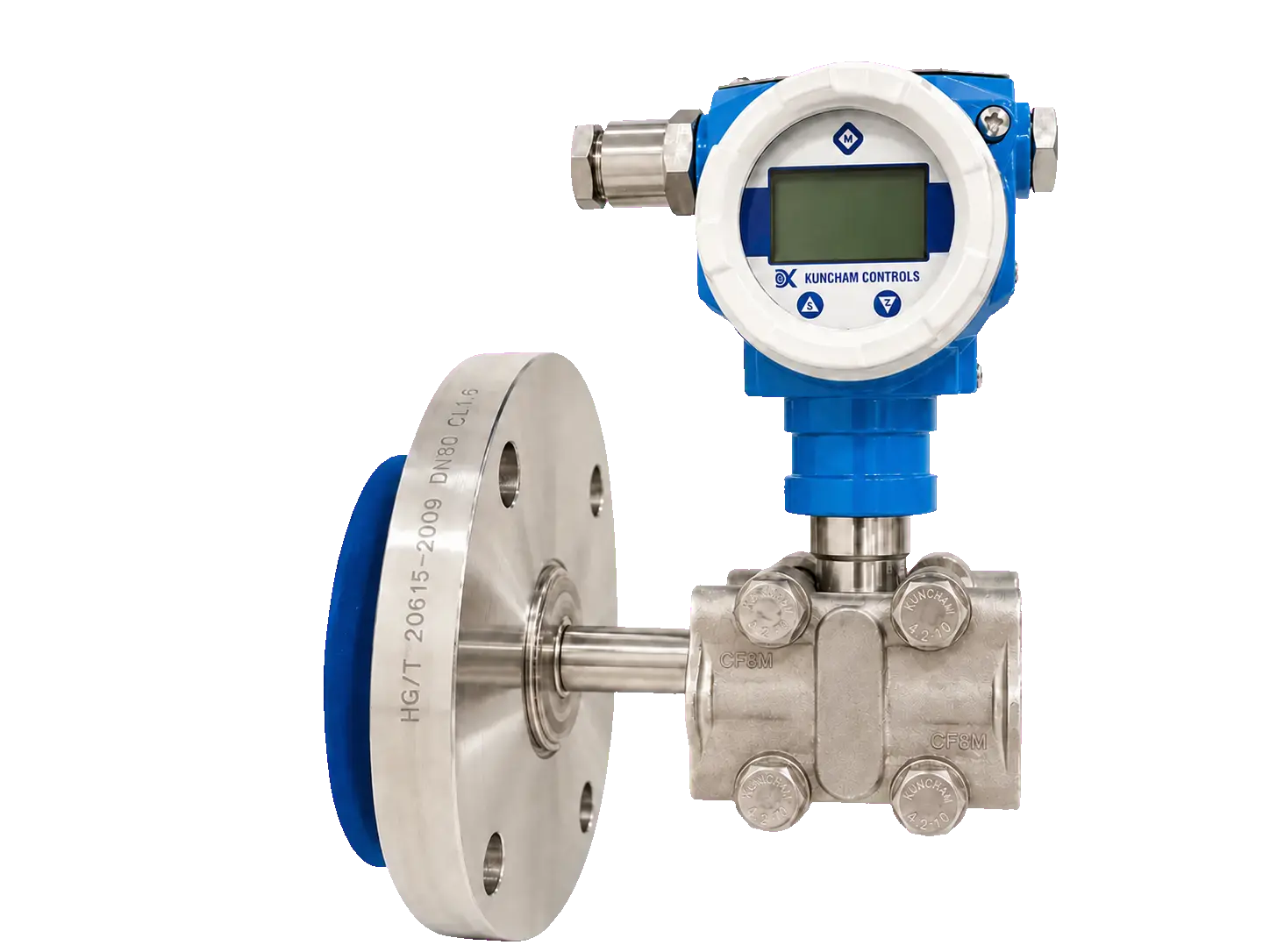

Hydrostatic Level Indicator Transmitter — Side Mounted – Flanged
KCSPLT-F-SM
Side-mounted flanged configuration for accurate continuous level measurement in open tanks.
- Configuration
- Side-mounted sensor with flanged connection
- Key Feature
- Robust industrial vessel mounting
- Suitable For
- Large tanks and process vessels

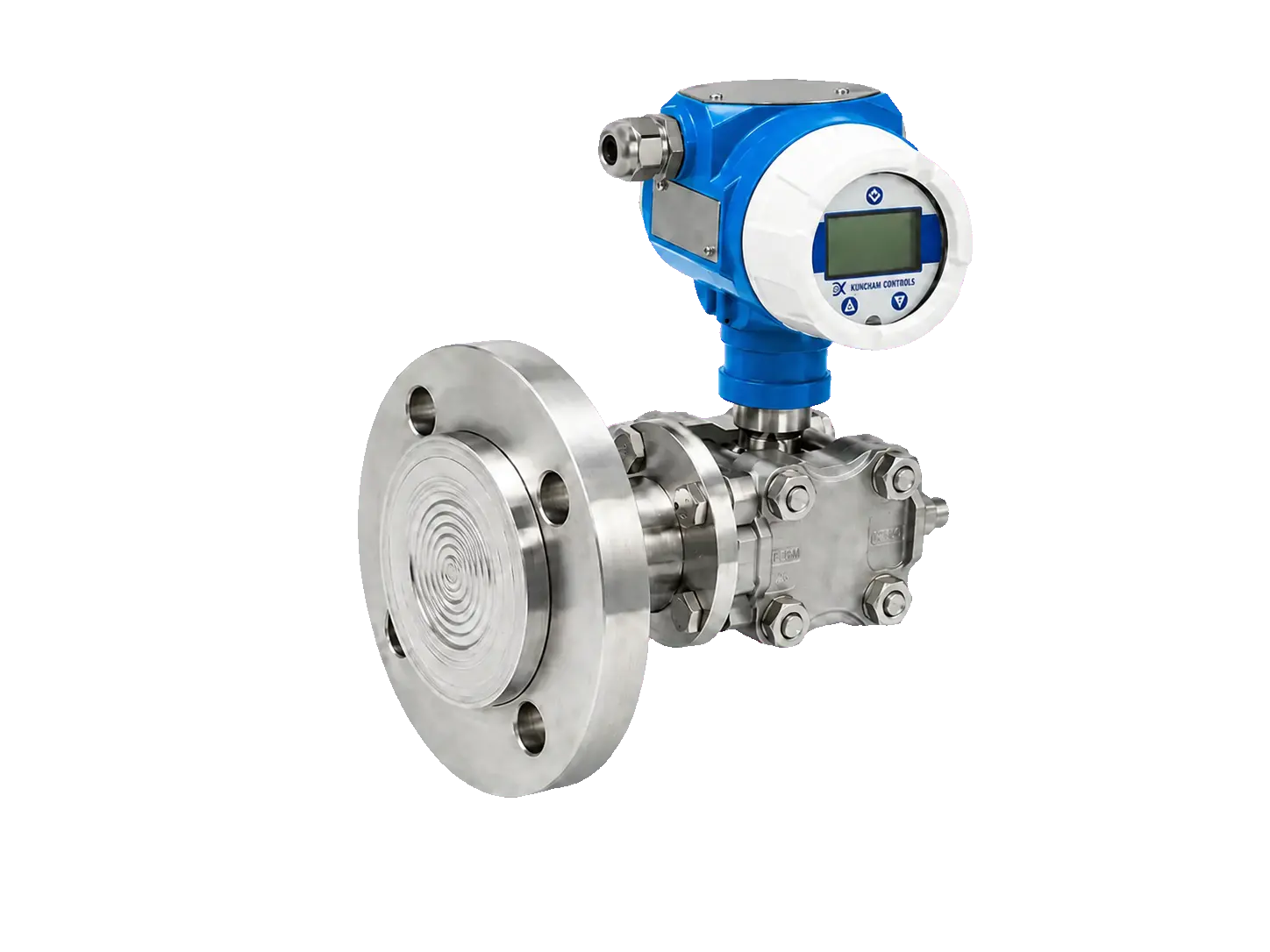

Hydrostatic Level Indicator Transmitter — Flush Diaphragm
Flush-diaphragm configuration for viscous, sticky or sediment-bearing liquids.
- Configuration
- Flush diaphragm; SS316L / Hastelloy C / Tantalum / PTFE-coated options
- Key Feature
- Minimises material build-up on the sensing surface
- Suitable For
- Viscous, sticky, slurry or corrosive liquids

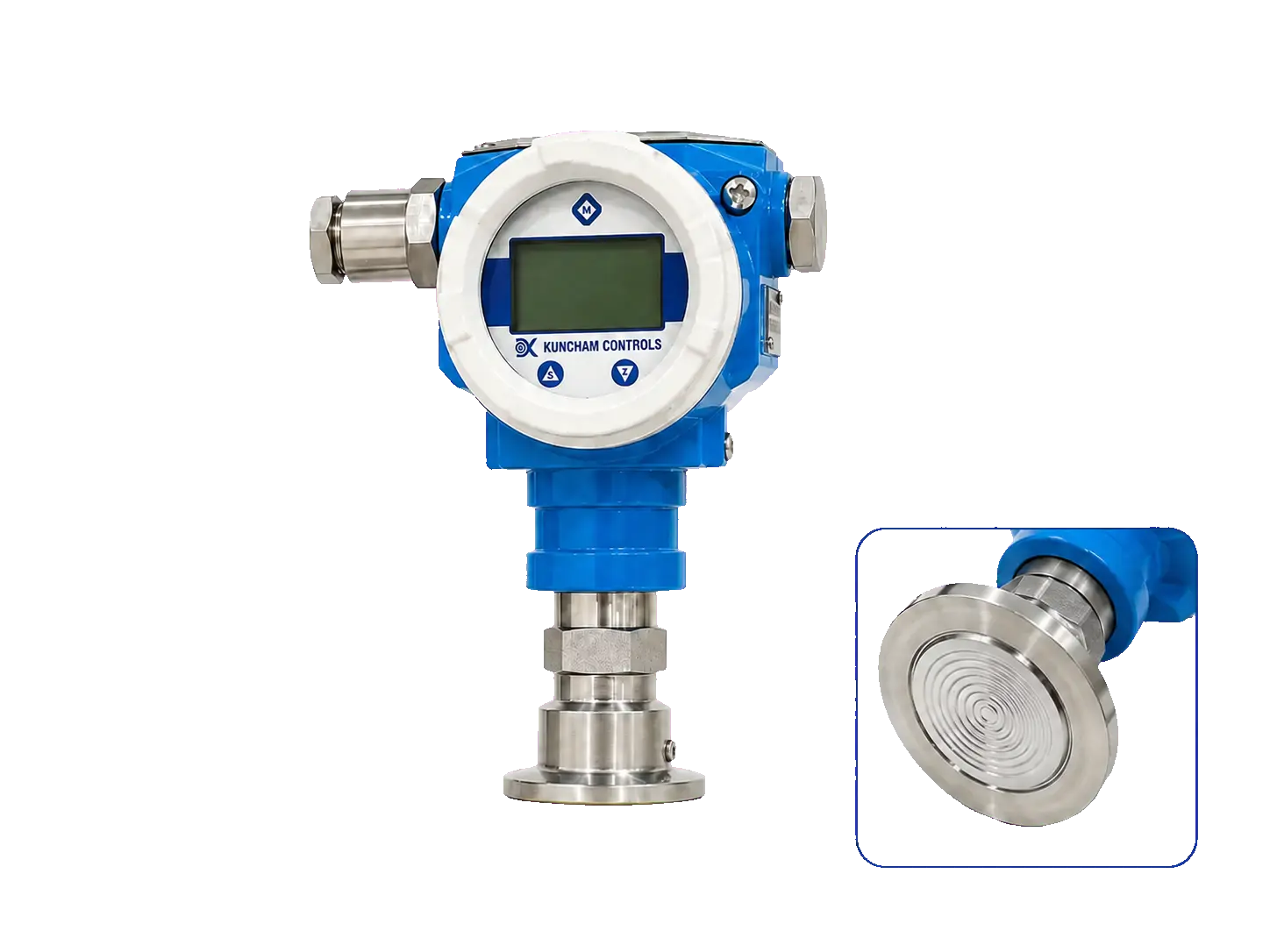

Hydrostatic Level Indicator Transmitter — Sanitary Tri-Clamp
Hygienic Tri-Clamp configuration for food, dairy and pharmaceutical vessels.
- Configuration
- Hygienic Tri-Clamp connection
- Key Feature
- Easy removal and sanitary installation
- Suitable For
- Pharma, food, dairy and beverage applications
