Pressure Indicator Transmitter

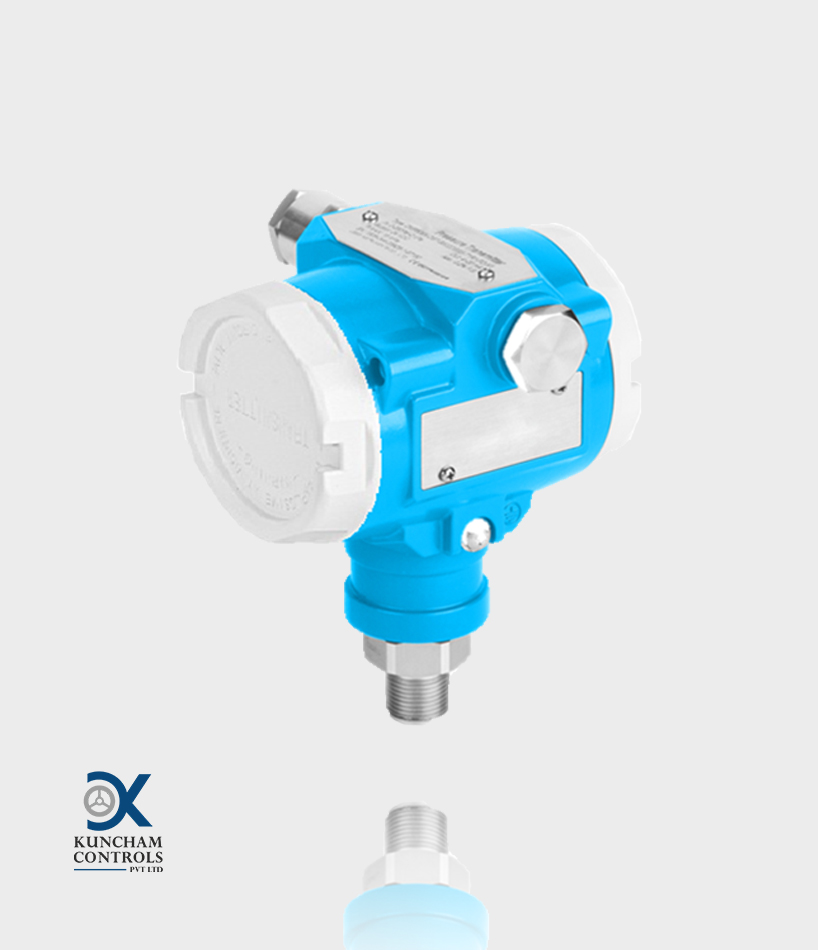

Model No: KCPIT Series (KCPTX-S)
Pressure Indicator Transmitters are designed for accurate pressure measurement with local digital indication and remote signal transmission across a wide range of industrial applications.
The transmitter senses process pressure and converts it into a proportional output such as 4–20 mA, 1–5 V or 2–10 V, while the integrated 5-digit backlit LCD provides clear local indication. HART and RS485 Modbus RTU communication options are also available for remote monitoring and control.
The product can be configured for gauge, absolute, vacuum, compound and sealed-gauge pressure measurement, with multiple accuracy options and a wide range of process connections. Wetted and diaphragm materials including SS304, SS316, SS316L, Hastelloy C, Tantalum and PTFE-coated options allow selection for different process media. Available configurations include threaded, flanged, Tri-Clover, cooling-fin, remote-seal and flush-diaphragm versions, all with flameproof housing.
Key Specifications
- 5-digit backlit LCD with front keypad configuration
- Gauge, absolute, vacuum, compound and sealed-gauge pressure measurement
- 4–20 mA with HART / RS485 Modbus RTU options
- Flameproof enclosure for industrial / hazardous-area installation
- Multiple process connections for different applications
- Wide range of wetted-part and diaphragm material options
Technical Specifications
- Pressure Range
- -1 to 600 bar; higher/custom ranges available on request
- Accuracy
- ±0.5% / ±0.25% / ±0.075% of FSD, depending on model/range
- Process Connection
- Threaded / Flanged / Tri-Clover
- Wetted Parts
- SS304 / SS316 / SS316L / PTFE-coated
- Diaphragm Material
- SS304 / SS316 / SS316L / Hastelloy C / Tantalum / PTFE-coated
- Enclosure
- Flameproof, IP67 / Ex d IIC T6 Gb
- Operating Temperature
- -20°C to +70°C; higher on request
- Output
- 4–20 mA / 1–5 V / 2–10 V
- Communication
- HART / RS485 Modbus RTU
- Power Supply
- 12–36 VDC
- Display
- 5-digit backlit LCD
- Cable Entry
- M20 × 1.5
- Pressure Type
- Gauge / Absolute / Vacuum / Compound / Sealed Gauge
- Overload Pressure
- 150% of full scale
- Response Time
- < 100 ms
Find Applications
- Process pressure monitoring in pipelines and vessels
- Pump and compressor pressure monitoring
- Hydraulic and pneumatic system pressure measurement
- Boiler, utility and steam-line pressure monitoring
- Chemical and process industry pressure measurement
- Vacuum and compound-pressure applications
- Local indication with remote signal transmission
Downloads & images
Technical documents
Types of Pressure Indicator Transmitter We Manufacture
Select Explore specifications to view that configuration's data in a popup.
Pressure Indicator Transmitter — Screwed Connection
KCPIT-S
Direct-mounted pressure indicator transmitter with a screwed process connection for general industrial pressure measurement.
- Configuration
- Direct-mounted threaded connection
- Key Feature
- Compact and simple process mounting
- Suitable For
- General industrial pressure measurement
Pressure Indicator Transmitter — Flanged Connection
KCPIT-F
Flanged pressure indicator transmitter for pipelines, tanks and industrial process vessels.
- Configuration
- Flanged process connection
- Key Feature
- Robust mounting for pipelines and vessels
- Suitable For
- Process lines, tanks and industrial vessels
Pressure Indicator Transmitter — Tri-Clover
Sanitary pressure indicator transmitter with a Tri-Clover connection for hygienic applications.
- Configuration
- Sanitary Tri-Clover connection
- Key Feature
- Easy removal and hygienic installation
- Suitable For
- Pharma, food, dairy and beverage applications
Pressure Indicator Transmitter — Cooling Fin
Cooling-fin configuration for elevated-temperature pressure measurement applications.
- Configuration
- Extended connection with cooling fins
- Key Feature
- Reduces process heat transfer to the transmitter
- Suitable For
- Steam, hot oil and high-temperature process lines
Pressure Indicator Transmitter — Remote Seal
Remote-seal configuration for corrosive, viscous, hot or difficult-to-access process points.
- Configuration
- Diaphragm seal with capillary; SS304 / SS316 / SS316L / Hastelloy C / Tantalum / PTFE-coated diaphragm options
- Key Feature
- Isolates the transmitter from difficult process conditions
- Suitable For
- Hot, corrosive, viscous or inaccessible process points
Pressure Indicator Transmitter — Flush Diaphragm
Flush-diaphragm configuration for sticky, viscous, slurry or clogging process media.
- Configuration
- Flush diaphragm; SS304 / SS316 / SS316L / Hastelloy C / Tantalum / PTFE-coated options
- Key Feature
- Reduces clogging and material build-up
- Suitable For
- Sticky, viscous, slurry or sediment-containing media
