Temperature Indicator Transmitter
Model No: KCTT-S
Temperature Indicator Transmitters are designed for continuous temperature measurement with clear local indication and remote signal transmission in industrial process applications.
The transmitter accepts PT100 / PT1000 RTD and thermocouple inputs and converts the measured temperature into standard output signals such as 4–20 mA, 1–5 V or 2–10 V. HART and RS485 Modbus RTU communication options are available for remote monitoring and control.
The product is available with threaded, flanged and thermowell configurations, with customised probe lengths to suit different process requirements. The common flameproof IP67 / Ex d IIC T6 Gb enclosure provides robust protection for industrial and hazardous-area installations. Thermowell configurations are available in SS304, SS316 and SS316L.
Key Specifications
- Local LCD indication for real-time temperature monitoring
- PT100 / PT1000 RTD and thermocouple input options
- Temperature range from -50°C to 600°C
- 4–20 mA with HART / RS485 Modbus RTU options
- Flameproof IP67 / Ex d IIC T6 Gb enclosure
- Customised probe lengths and process connections
Technical Specifications
- Sensor Input
- PT100 / PT1000 RTD / Thermocouple
- Temperature Range
- -50°C to 600°C
- Accuracy
- ±1% of FSD standard; higher accuracy available on request
- Process Connection
- Threaded / Flanged / Tri-Clover
- Probe Length
- Customised as per application
- Probe Material
- SS304 / SS316 / SS316L
- Enclosure
- Flameproof, IP67 / Ex d IIC T6 Gb
- Output
- 4–20 mA / 1–5 V / 2–10 V
- Communication
- HART / RS485 Modbus RTU
- Power Supply
- 12–36 VDC
- Display
- 5-digit backlit LCD
- Cable Entry
- M20 × 1.5
Find Applications
- Process temperature monitoring in pipelines and vessels
- Boiler, steam and utility temperature measurement
- Chemical and process industry applications
- Food, beverage and pharmaceutical process monitoring
- Heat exchanger and reactor temperature measurement
- OEM machinery and skid-mounted equipment
- Local indication with remote signal transmission
Downloads & images
Technical documents
Types of Temperature Indicator Transmitter We Manufacture
Select Explore specifications to view that configuration's data in a popup.

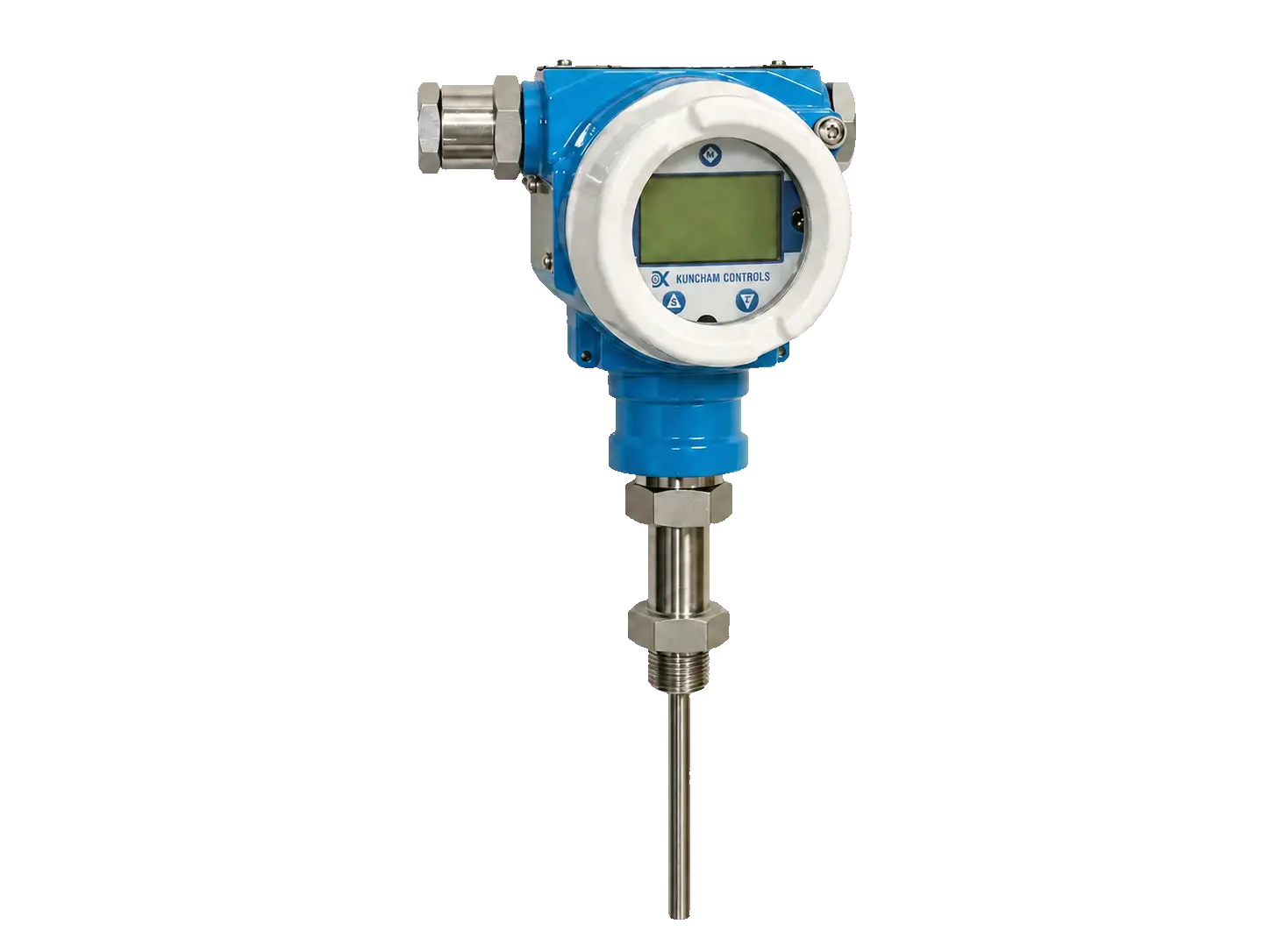

Temperature Indicator Transmitter — Screwed Connection
KCTIT-S
Screwed process connection for standard thermowells and pipe fittings.
- Configuration
- Threaded process connection
- Key Feature
- Compact and simple installation
- Suitable For
- General process temperature measurement

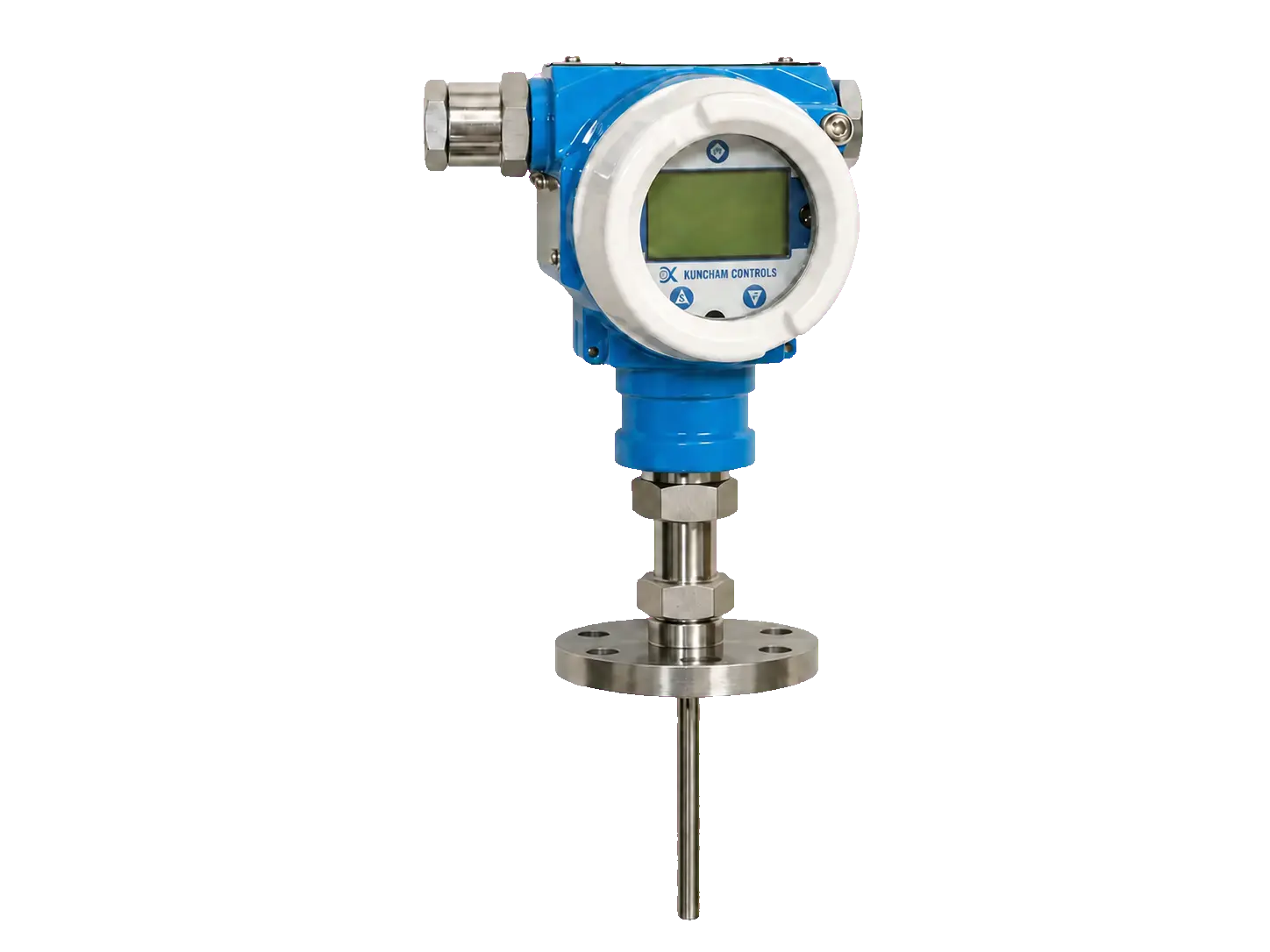

Temperature Indicator Transmitter — Flanged Connection
KCTIT-F
Flanged process connection for high-pressure systems needing strong, standardised fittings.
- Configuration
- Flanged process connection with customised probe length
- Key Feature
- Robust mounting on larger process nozzles
- Suitable For
- High-pressure systems, vessels and process lines
Temperature Indicator Transmitter with Thermowell
KC-TIT-PM
Temperature Indicator Transmitter supplied with a protective thermowell for easier sensor maintenance.
- Configuration
- Thermowell in SS304 / SS316 / SS316L; threaded or flanged connection
- Key Feature
- Protects the sensor and allows easier removal or replacement
- Suitable For
- Pressurised pipelines, vessels and industrial process applications
